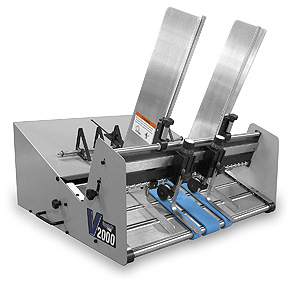

Streamfeeder V-2000

Introducing the new Streamfeeder V-2000 - the latest addition to the Value Series. And now it's CE certified.

The Streamfeeder V-2000 is a Continuous Feeder for applications such as Ink Jet Printing, Tabbing, and Labeling. It is capable of feeding a wide variety of materials at high speed with exceptional alignment qualities.

Features include quick and tool-less setup, quick make-ready, and easy maintenance. For example, feed belts can be repositioned with the use of single knob adjustments, and belts can be replaced quickly. The side guides also feature single knob adjustments and can be quickly removed without tools. Two independently adjustable separators help improve feeding of uneven materials. Newly designed material levelers also feature single knob adjustments. In addition, there is a hinged panel for easy access to controls and electronics.

Applications:
(click to view video)
Streamfeeder Reinforcing Machines
Streamfeeder Mail Processing

















Technical Data
Maximum Product Size: 20 W x 18 L in (508 x 457.2 mm)*

Minimum Product Size:

2 W x 3 L in (50.8 x 76.2 mm)*
Min/Max Product Thickness: .003-1.0 in (.076-25.4 mm)
Belt Speed: 7800 ipm (198,120 mm/min)
Electrical Requirements: 115/230vac, 50/60Hz, 3A
Weight: 90 lbs. (40.82 kg)
*Optional product size available
