Streamfeeder U-Card Former

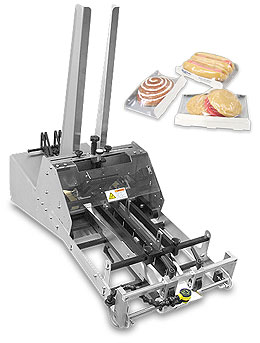

The Streamfeeder U-Card Former is a specially modified version of our extended vacuum transport. Included are plow forming plates that shape u-cards as they are dispensed from the feeder. The vacuum belt provides control of the product to improve performance. The card can then be placed on a variety of conveyor streams for product placement and wrapping.

Applications:
(click to view video)

Streamfeeder Food Packaging





















Technical Data
Maximum Product Size: 10 W x 1.5 L in (254 x 38.1 mm)

Minimum Product Size:

2 W x .5 L in (50.8 x 12.7 mm)

Min/Max Product Thickness: .003-.04 in (.076-1.016 mm)
Maximum Speed: 60 pieces/minute
Electrical Requirements: 115/230vac, 50/60Hz, 10A
Weight: 78 lbs. (35.34 kg)
