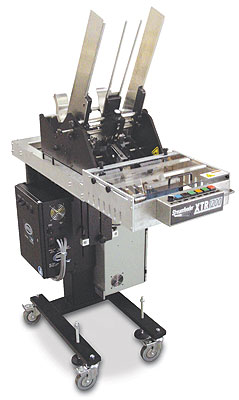

Streamfeeder SV-1200 Retractable Dropper

The Streamfeeder SV-1200, our fastest servo motor feeder, along with our Retractable Dropper provides high performance feeding, counting, and accumulation. The heavy-duty construction and simple tool-less, single-knob adjustments allow you to feed and count a wide variety of products at high speeds.

Applications:
(click to view video)

Streamfeeder High-Speed Batch Counting

























Technical Data
Maximum Product Size: 12 W x 12 L in (304 x 304 mm)
Minimum Product Size: 3 W x 4 L in (76 x 101 mm)
Min/Max Product Thickness: .003-.5 in (.076-12.7 mm)
Batch Size (max. accum. thickness) 1.5in (38mm)
Belt Speed: 8900 in/min (226,000 mm/min)
Electrical Requirements: 115/230vac, 50/60Hz, 6A
Air Requirements: 2 CFM
Weight: 185 lbs. (83.9 kg)
Weight (stand): 150 lbs. (68 kg)
Warranty: One-year limited
