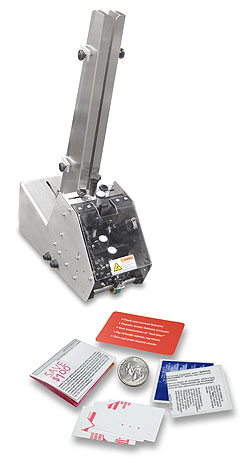

Streamfeeder ST-550 Small Product Feeder

The Streamfeeder ST-550 Small Product Feeder is designed to feed small products under 3” x 3”, as well as products that vary in material, texture and flatness. Quickly and easily sets up to feed small, lightweight, and folded products into cartons, clamshells and various streams. Its small footprint allows the Streamfeeder ST-550VT to fit into tight areas. Options include a vacuum transport to provide even greater product control. Also available is a barcode reader option.
Applications:
(click to view video)

Streamfeeder Products Under 3” x 3”

Streamfeeder Small Cards
Streamfeeder ID Tags
Streamfeeder Peel and Stick Products



























Technical Data
Maximum Product Size: 5 W x 5.5 L in (127 x 139.7 mm)

Minimum Product Size:
(optional):

2 W x 2.5 L in (50.8 x 63.5 mm)
1 W x 2.5 L in (25.4 x 63.5 mm)
Min/Max Product Thickness: .003-1.0 in (.076-25.4 mm)
Belt Speed: 5500 in/min (140,000 mm/min)
Electrical Requirements: 115/230vac, 50/60Hz, 6A
Weight: 69 lbs. (32 kg)
