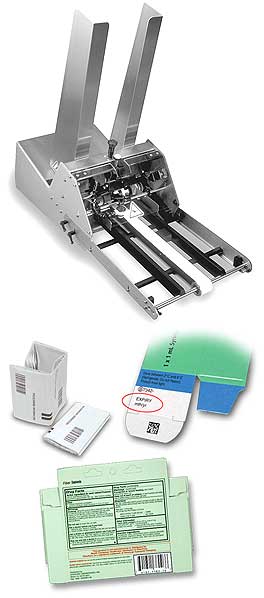

Streamfeeder ST-1250 Vacuum Transport

Designed for secondary inline operations. It creates an open space on the carriage for adding equipment such as bar code readers, date stamps and more. In addition, the vacuum belt feature can provide improved product stabilization by utilizing a vacuum generator or a vacuum blower.
Applications:
(click to view video)

Streamfeeder Bar Codes

Streamfeeder Envelopes
Streamfeeder Flat Cartons



































Technical Data
Maximum Product Size: 8.5 W x 11 L in (215.9 x 279.4 mm)*

Minimum Product Size:
(optional):

3.75 W x 3.75 L in (95.25 x 95.25 mm)*
2 W x 2.5 L in (50.8 x 63.5 mm)*
Min/Max Product Thickness: .003-1.0 in (.076-25.4 mm)
Belt Speed: 5500 in/min (140,000 mm/min)
Electrical Requirements: 115/230vac, 50/60Hz, 6A
Air Requirements:
- Vacuum Generator 4 CFM @ 90 PSI
- Vacuum Blower 115/230vac, 50/60Hz, 5.6/2.0A
Weight: 89 lbs. (40.367 kg)
*Contact us for product sample evaluation
