Streamfeeder Speed Following



OVERVIEW

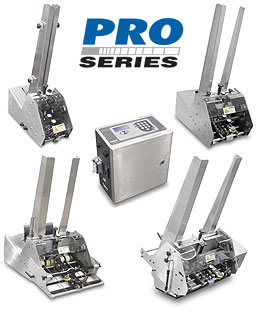

Streamfeeder Pro Series Speed Following is an option now available on all new Streamfeeder Pro Series feeders/dispensers. Streamfeeder Speed Following enables you to automatically adjust the speed of the feeder/dispenser in relation to the speed of the conveyor. As a result, the product is accurately placed onto the conveyor regardless of speed changes, minimizing damage while maintaining product control at varying conveyor speeds.

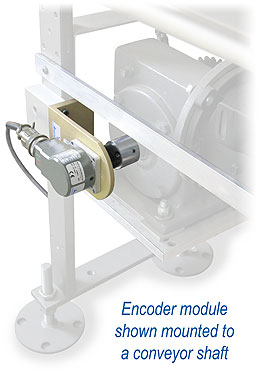

The Streamfeeder Speed Following option will be displayed as a menu item in the Streamfeeder I-Quipped intelligent control system of Streamfeeder Pro Series feeders/dispensers. Included with the Streamfeeder Speed Following option is an encoder module which can be mounted to the drive shaft of the conveyor in various configurations. The encoder is then connected to the feeder/dispenser with a cable (also included).
TECHNICAL DESCRIPTION
The encoder detects the speed of the conveyor in real-time and communicates it to the feeder/dispenser. The speed at which products leave the feeder/dispenser are then automatically and continuously adjusted.

This allows for greater accuracy of product placement at varying speeds. Once the conveyor speed is determined (estimated or actual), an easy-to-use operator setup will enable the Streamfeeder Speed Following feature.
