Streamfeeder RT-100
Patent Pending

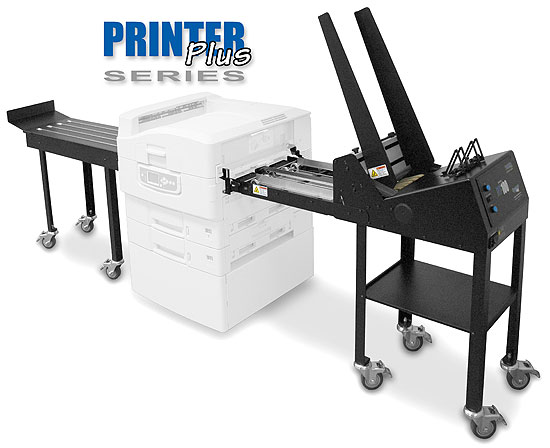

Introducing the new Streamfeeder PrinterPlus Series RT-100 Feeder System.
The system includes a specially designed Top-Load Friction Feeder and High-Capacity Shingling conveyor that can be integrated to an Intec Laser Printer (Speed and capacity based on printer specifications).

The Streamfeeder Product Line is a proven and recognized industry leader of patented friction feeding technology. Streamfeeder feeding solutions can be found in the largest and the smallest print facilities worldwide.

The affordable Streamfeeder RT-100 improves productivity by enabling continuous production and quick changeovers of envelopes, letterhead, business cards and more.

Features:

  • Feeds a wide variety of products and sizes:
    - Envelopes
    - Card stock
    - Postcards
    - Labels
    - Standard paper
    - Feed sizes from 3”W x 5”L to 12”W x 18”L
  • The system includes:
    - Specially designed top-load friction feeder
    - Registration table
    - Shingling conveyor
    - Product stacking shelf
    - Stand and locking casters
  • The feeder includes quick and easy set-up features:
    - Quick-connect docking station
    - Single knob adjustments for hopper
    - Single knob adjustments for product separator
    - Single speed motor
    - Product jogging
    - Easy to roll away when feeder is not in use
Technical Data
Maximum Product Size: 12 in. W x 18 in. L (305 mm x 457 mm)
Minimum Product Size: 3 in. W x 5 in. L (76 mm x 127 mm)
Min/Max Product Thickness: .003 in to .022 in. (.076 mm - .56 mm)
Electrical Requirements:
  Feeder: 115/230vac, 50/60Hz, 3A
  Conveyor: 115vac, 60Hz, 1A
Weight:
  Feeder only: 95 lbs. (43 kg)
  Feeder including stand: 105 lbs. (48 kg)
  Conveyor only: 45 lbs. (20 kg)
Warranty: One-year limited
